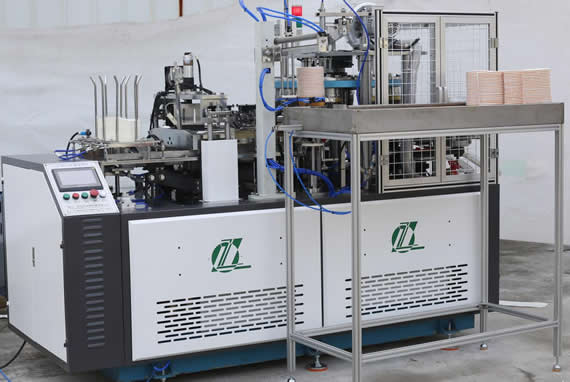

LBZ-LB6 Automatic Middle Speed Paper Bowl Machine

LBZ-LA4 Singe Plate Paper Cup Machine

Brief Introduce :

This machine adopts open cylinder indexing slot wheel, The machine through only one aluminum plate to complete the process of making cups,it’s single shaft & plate system,then make the machine smaller and faster, It has automatic lubricating oil system, photoelectric detection, fault alarm, counting, cam system,touch screen and other functions, Through the automatic feeding, cup-fan-wall sealing, oiling, bottom punching, heating, knurling, curling, discharge cup etc.
continuous process. can improve the production of beverage mugs, tea mugs, coffee cup, advertising cup, ice cream cups speed is the ideal equipment.

Main Technical Data:

  • Name: Middle Speed Paper bowl Machine.
  • Model: LZ-D800
  • Paper bowl Size: 300m-1300ml
  • Size range: Top： 90-165 Bottom： 70-130 Height：50-115
  • Raw Material: PE paper
  • Suitable paper weight: 150-350 GSM
  • Productivity: 70pcs/min
  • Power Source: 220V/380v
  • Total Power: 8.5KW
  • Total Weight: 3000KG
  • Appearance size(L x W x H):  2520mmx1160mmx1750mm
  • Working Air Source:05-08MPa，0.4CBM/min.
  • Operator :one persone .
  • Working hours:24 hours.
  • HS Code:84414000.

Paper Bowl Samples Show:

  • paper cups,Single Side PE Coated Paper Cups
  • Ice cream paper cups
